Subfloor Preparation: The Key to Long Lasting Floors

Why Subfloor Preparation Matters

Subfloor preparation isn’t optional. It’s the single biggest factor affecting how your new floor performs over time.

In most cases, flooring doesn’t fail because of the product itself — it fails because the surface beneath it wasn’t properly prepared. Issues such as:

Excess moisture
Uneven or out-of-tolerance substrates
Structural movement
Surface contamination
Incorrect priming or levelling

can all compromise the finished result, regardless of how high-quality the flooring is.

Whether you’re installing engineered wood, solid hardwood, laminate, click LVT (SPC), or glue-down LVT, the principles of correct subfloor preparation remain the same.

This guide sets out clear, practical, UK-relevant standards to help you prepare your subfloor correctly before installation. It’s designed for confident DIYers, professional fitters, and anyone who wants to ensure their new floor performs exactly as it should — from day one.

Installation Guide Contents

1. Identify Your Subfloor Type

Before carrying out any preparation work, you must first confirm exactly what type of subfloor you’re dealing with.

Different substrates behave differently. They absorb moisture at different rates, respond differently to temperature changes, and require different preparation products. Treating them the same can lead to installation failure.

Common Subfloor Types in UK Homes

Concrete Slab

Typically found in ground-floor properties, extensions, and many new builds. Usually incorporates a damp proof membrane (DPM), though older properties may not. Moisture testing is essential.

Sand & Cement Screed

Laid over a concrete slab to create a smoother surface. Drying times can be lengthy, and moisture levels must be confirmed before installation.

Anhydrite / Liquid Screed

Often used in modern developments, particularly with underfloor heating. Requires sanding to remove laitance and stricter moisture thresholds before flooring is installed.

Timber Floorboards

Common in period properties and upper floors. These require structural checks for movement, deflection, and moisture consistency.

Plywood or Chipboard Decking

Typically found on upper floors or over joists. Thickness, stability, and fixing condition must be assessed before installation.

Beam & Block Construction

Precast concrete beams with infill blocks, commonly used in modern builds. Usually topped with screed. Moisture and flatness must be verified before flooring is laid.

2. Subfloor Performance Requirements

Before any flooring is installed, the subfloor must meet three core performance criteria:

Moisture levels within tolerance
Flatness within acceptable deviation
Structural stability under load

All three must be satisfied. Meeting one does not compensate for failing another.

2.1. Moisture Control

Moisture is the leading cause of flooring failure in the UK. It can cause cupping, lifting, adhesive breakdown, joint separation, and long-term structural damage.

Moisture must always be tested — never assumed.

Concrete & Screed Subfloors

All concrete and screed substrates must be tested using an approved method before flooring installation.

Recommended Test Method

In-situ hygrometer (relative humidity probe test)
Test multiple areas, including near external walls and service penetrations

Seal the probe and allow sufficient time for the reading to reach equilibrium — typically between 24 and 72 hours, depending on site conditions and test method.

Testing should be carried out in accordance with BS 8203 or the relevant flooring standard. Surface moisture meters are not sufficient on their own for installation approval.

Maximum Acceptable Moisture Readings (General Guidance)

Standard bonded flooring: Maximum 75% RH
If no structural DPM is confirmed: Apply an appropriate surface damp proof membrane
Anhydrite / liquid screed: Typically below 0.5% CM (check manufacturer specification)

Always follow the flooring and adhesive manufacturer’s stated limits where they differ.

Drying Times – A General Guide Only

Drying time depends on thickness, ventilation, temperature, and humidity.

As a rule of thumb:

Approximately 1mm per day up to 40mm thickness
Approximately 2mm per day beyond 40mm

Fast-drying or proprietary screeds may vary significantly — manufacturer guidance must be followed.

Time alone is not proof of dryness. A screed that has been down for months may still fail moisture testing.

Timber Subfloors – Moisture Control

Timber subfloors behave differently from concrete. They are hygroscopic, meaning they absorb and release moisture in response to changes in humidity. This movement must be controlled before installation.

Test Method

Moisture testing should always be carried out before installing any wood, laminate, or LVT flooring over timber substrates.

Use:

A calibrated pin-type moisture meter
Test multiple boards across the room
Check areas near external walls, chimney breasts, and radiator pipe penetrations
Record readings for reference

Surface-level testing is not sufficient — readings must be taken within the board.

Acceptable Moisture Content

For most timber installations:

8–12% moisture content is considered acceptable
The subfloor should be within 2–4% of the moisture content of the flooring being installed

Excessive variation between the subfloor and the new flooring increases the risk of movement, cupping, and joint stress.

If Moisture Readings Are Too High

Do not proceed with installation.

Instead:

Improve subfloor ventilation (particularly in suspended timber floors)
Check air bricks are clear and unobstructed
Identify and resolve plumbing leaks or damp ingress
Allow additional time for the environment to stabilise

Installation must not proceed until moisture levels are within acceptable limits.

2.2 Flatness & Level Tolerances

A floor can appear flat to the eye and still fall outside acceptable installation tolerances.

Even small deviations can cause:

Joint stress
Lipping between boards
Click system failure
Hollow spots under bonded flooring
Premature wear

Flatness must be measured, not judged visually.

UK Industry Tolerance

As a general standard:

Maximum deviation: 3mm over 2 metres
(unless the flooring manufacturer specifies otherwise)

This should be checked using a 2-metre straight edge placed in multiple directions across the floor.

Do not rely on spirit levels or sightlines alone. Flatness must be measured correctly using a straight edge.

On-Site Check Tip: A £2 coin is approximately 2.4–2.5mm thick. If a single coin easily slides beneath a 2-metre straight edge, the floor is approaching the 3mm tolerance limit. If two coins fit, the deviation is clearly beyond acceptable limits and levelling will be required.

Concrete Subfloors

Concrete and screed substrates frequently require correction before flooring installation.

Common corrective methods include:

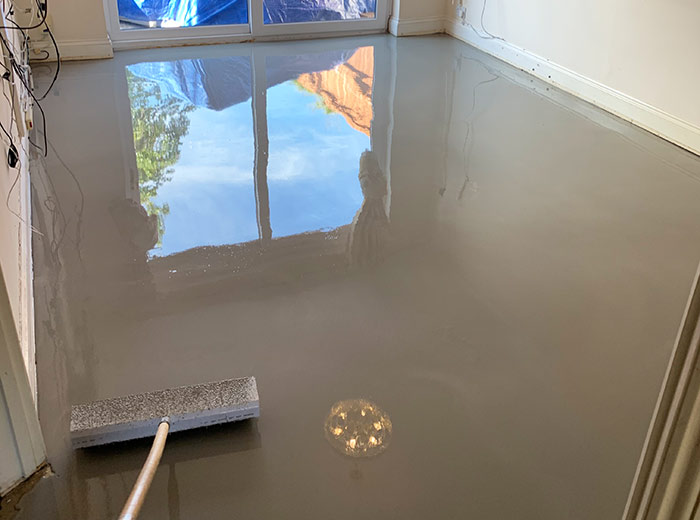

Application of self-levelling compound
Application of smoothing compound
Grinding down high spots
Repair mortar for localised dips or damaged areas

Minimum levelling depth is typically around 3mm, though this depends on the product used and the condition of the substrate.

For glue-down LVT and bonded wood flooring, surface smoothness is especially critical — imperfections can telegraph through the finished floor.

Timber Subfloors

With timber substrates, flatness and structural movement must both be assessed.

Check for:

Excessive deflection between joists
Inadequate joist spacing
Board movement under load
Squeaks or loose fixings

Any vertical movement must be addressed before installation.

Common corrective measures include:

Reinforcing joists where necessary
Installing noggins between joists to reduce movement
Overlaying existing floorboards with a minimum 9 mm flooring-grade plywood (such as SP101 or BS EN 636-2 compliant), suitable for humid conditions and free from core voids. Where boards are being installed directly over joists, a structural deck of typically 18 mm thickness or greater is normally required.
Using 6mm hardboard only for resilient flooring applications
Screwing down loose boards

Floating floors can tolerate minor surface texture — but they cannot tolerate structural movement.

2.3 Structural Stability

Compliance with moisture and flatness requirements does not guarantee performance. Structural stability must also be confirmed.

If the base moves, cracks, flexes, or degrades under load, that movement will transfer directly into the finished floor.

Stability is critical for both floating and bonded installations.

Concrete Integrity

Concrete and screed bases must be sound and capable of supporting the intended flooring system.

Check for:

Structural cracks — wide, active, or stepped cracking may indicate movement and should be professionally assessed
Shrinkage cracks — typically fine and stable, but must still be evaluated
Laitance — a weak, dusty surface layer common with anhydrite screeds; this must be mechanically removed before priming or bonding. Ideally, laitance should be removed approximately 7–10 days after the screed is laid. Delayed removal can make the surface significantly harder to prepare and may affect bond performance.
Hollow spots — tap-testing can help identify delaminated or poorly bonded screed areas
Adequate compressive strength — particularly important for bonded wood and glue-down LVT installations

For bonded flooring systems, the substrate must have sufficient pull-off strength to ensure adhesives perform correctly. Weak or friable surfaces will result in bond failure.

If there is any doubt about substrate integrity, it must be rectified before installation proceeds.

Timber Subfloors

Timber substrates must be both structurally secure and dimensionally stable.

Ensure:

A minimum thickness of 18mm where required for standard installations
No signs of rot, fungal decay, or water damage
No excessive flex between joists
Boards are securely fixed with no lifting or movement

Walk the floor and apply weight across multiple areas. Any noticeable movement must be addressed.

Common remedies include:

Re-fixing loose boards
Adding additional fixings
Reinforcing joists

Installing a structural flooring-grade plywood overlay (e.g. SP101 or BS EN 636-2), correctly fixed and free from core gaps.

Movement under load will not “settle” once the flooring is installed — it will transfer directly through to the finished surface.

3. Surface Preparation & Bond Readiness

Once moisture, flatness and structural stability have been confirmed, the substrate must be prepared to ensure proper adhesion.

Preparation at this stage determines whether primers, levelling compounds and adhesives perform as intended. Even a compliant subfloor can fail if the surface is contaminated or improperly treated.

3.1 Cleaning & Mechanical Surface Preparation

Surface contamination is one of the most common causes of adhesive failure.

Adhesives and levelling compounds rely on direct contact with a clean, sound substrate. If contaminants are present, bond strength is compromised — even where the floor appears flat and dry.

For this reason, all substrates must be thoroughly prepared before any priming, levelling, or bonding takes place.

Remove All Contamination

The surface must be free from:

Old adhesive residue
Paint or plaster contamination
Oil or grease
Dust and fine particles
General construction debris

Do not assume that sweeping alone is sufficient.

Chemical Cleaning

Where oil or stubborn contamination is present, specialist products may be required:

Degreasers for oil-contaminated concrete
Adhesive removers for bonded residue

Chemical cleaning must be followed by thorough rinsing and drying in accordance with product instructions.

Mechanical Preparation Methods

Mechanical preparation is often the most reliable method of ensuring a clean, keyed surface.

Common methods include:

Shot blasting – effective for removing surface contamination and opening up concrete
Diamond grinding – used to remove laitance, adhesives, or uneven patches
Sanding – suitable for timber substrates

Mechanical preparation also helps create a surface profile that improves primer and adhesive performance.

Dust Control

Dust must be fully removed before any primer or adhesive is applied.

Professional dust extraction systems should be used during mechanical preparation. Residual dust can significantly reduce bond strength and lead to long-term failure.

A substrate should feel clean and solid — not dusty or chalky — before proceeding to the next stage.

3.2 Surface Treatments - Primers, DPMs & Levelling Compounds

Once the subfloor is clean, dry, flat, and stable, preparation usually comes down to three key elements:

A surface damp proof membrane (where required)
The correct primer
A suitable levelling compound

Used properly, these products create a stable, bondable surface and help prevent moisture-related issues.

When to Use a Surface DPM (Liquid DPM)

A surface DPM is used to control residual moisture and protect the flooring system where a structural DPM is missing, uncertain, or the substrate has tested high.

You should normally consider a surface DPM where:

There is no confirmed structural damp proof membrane (common in older properties)
Moisture readings are above 75% RH
You are working on ground floors, basements, or areas with higher damp risk

Most liquid DPM systems are applied in two coats, with a specified drying time between coats. Always follow the manufacturer’s coverage rate and cure times — applying too thinly is a common failure point.

Primers

Primers are not a “nice to have”. They are used to stabilise the surface and ensure preparation products bond correctly.

Primers are commonly used before:

Applying levelling compounds
Applying adhesives (especially for glue-down LVT and bonded wood systems)

A good primer:

Improves bond strength
Reduces the risk of pin-holing and air release in levelling compounds
Prevents rapid suction on porous substrates, which can weaken the finished layer

Primer type varies by subfloor (porous vs non-porous), so choose the correct one for the substrate you’ve identified.

Levelling Compounds

Levelling compounds are used to correct surface irregularities and create a smooth, uniform base for installation.

Drying time varies by product, temperature, and thickness, but a common rule of thumb is:

Approximately 24 hours per 3mm depth

Do not rush this stage. Installing too early can trap moisture, weaken the bond, and compromise the floor’s long-term performance — especially with glue-down LVT, where imperfections and movement transfer straight through.

4. Environmental Conditions & Acclimatisation

Subfloor preparation does not end with moisture testing and levelling. Environmental conditions within the property must also be stabilised before installation begins.

Temperature and humidity directly affect both the subfloor and the flooring material. Installing in unstable conditions increases the risk of movement, expansion pressure, and bond failure.

Environmental Conditions During Preparation & Installation

Maintain:

A minimum room temperature of 18°C
Stable relative humidity levels
No rapid heating or cooling cycles
Windows and doors fully enclosed

Avoid introducing sudden heat immediately before or after installation. Sharp temperature changes can cause rapid expansion or contraction in both timber substrates and flooring products.

Underfloor Heating

Where underfloor heating is present:

The system must be fully commissioned before installation
Heating should be gradually brought up to operating temperature, then reduced prior to installation
The system must not be used to “force dry” screeds

Moisture testing must still be carried out — underfloor heating does not guarantee dryness.

For detailed commissioning procedures, moisture cycling guidance, and flooring-specific considerations, please refer to our dedicated Underfloor Heating Guides.

Acclimatisation

Flooring materials must be allowed to adjust to site conditions before installation.

General guidance:

Engineered wood: Minimum 48 hours
Laminate: Minimum 48 hours
LVT: Minimum 24 hours
Solid Wood: Typically 5–7 days (subject to manufacturer guidance)

Always follow manufacturer-specific guidance where it differs.

Store unopened packs:

Flat
In the installation room
Away from direct heat sources
In stable environmental conditions

Acclimatisation does not replace moisture testing — it simply reduces the risk of rapid post-installation movement.

5. When to Seek Professional Assessment

Subfloor preparation can often be completed successfully with correct testing and careful execution. However, certain site conditions require specialist evaluation.

Professional assessment should be considered where:

Structural cracking is present
Moisture readings remain above acceptable limits
Substrate integrity is uncertain
Listed building or conservation restrictions apply
Underfloor heating systems present commissioning or moisture concerns
Large commercial or high-traffic areas are involved

In these situations, proceeding without specialist input increases the risk of installation failure.

A professional assessment may include:

Comprehensive moisture mapping
Core sampling of screed or slab
Pull-off strength testing
Thermal imaging (particularly where underfloor heating is installed)

Where doubt exists regarding structural condition or moisture behaviour, installation should not proceed until the substrate has been properly evaluated and certified as suitable.

6. Technical Quick Reference Table

Subfloor Type	Maximum Moisture Content	Typical Levelling Depth	Maximum Deviation
Concrete	≤ 75% RH or ≤ 2.0% CM	3mm	≤ 3mm over 2m
Timber	8–12% moisture content	2mm	≤ 3mm over 2m
Anhydrite	≤ 65% RH or ≤ 0.5% CM	1mm	≤ 3mm over 2m

Rotate your device to landscape to view the full technical reference table.

Subfloor Type	Maximum Moisture Level (General Guidance)	Surface Preparation Requirements	Flatness Tolerance	Additional Considerations
Concrete Slab / Sand & Cement Screed	≤ 75% RH (hygrometer) or ≤ 2.0% CM	Prime before levelling or bonding	≤ 3mm over 2m	Surface DPM required if no structural DPM or RH exceeds limit
Anhydrite / Liquid Screed	≤ 65% RH or ≤ 0.5% CM	Laitance must be mechanically removed before priming	≤ 3mm over 2m	Sanding mandatory before bonding; moisture testing critical
Timber Floorboards	8–12% moisture content	Secure, stabilise, and overlay if required	≤ 3mm over 2m	Subfloor must be within 2–4% of flooring moisture content
Plywood / Chipboard Deck	8–12% moisture content	Secure fixings and check for movement	≤ 3mm over 2m	Minimum 18mm thickness typically required
Beam & Block (with Screed)	≤ 75% RH (test screed layer)	Confirm screed integrity and DPM presence	≤ 3mm over 2m	Moisture testing applies to screed layer

Values shown represent general UK guidance. Always follow specific flooring and adhesive manufacturer requirements where they differ.

7. Frequently Asked Questions on Subfloor Preparation

The following answers address common technical questions relating to subfloor preparation, moisture control and surface readiness prior to flooring installation.

Can I install flooring over a screed that feels dry but hasn’t been moisture tested?

No. A screed can feel dry on the surface while still retaining excess moisture within its depth. Installation should only proceed once moisture levels have been tested using an approved method (e.g. in-situ hygrometer) and confirmed within the manufacturer’s stated limits. Surface appearance or age of the screed alone does not confirm suitability.

Is a self-levelling compound always required?

Not necessarily. A levelling compound is only required if the subfloor exceeds acceptable flatness tolerances (typically 3mm over 2 metres) or if localised defects need correction. If the substrate is already within tolerance and structurally sound, additional levelling may not be necessary. Measurement should always be carried out before deciding.

Does underfloor heating mean the screed is dry?

No. Underfloor heating does not guarantee that a screed has reached acceptable moisture levels. While commissioning can help stabilise the substrate, moisture testing must still be carried out in accordance with recognised standards before installation. Heating should never be used to “force dry” a screed.

Can I install directly over old adhesive?

In most cases, no. Old adhesive residue can compromise bond strength and may react with new adhesives or levelling compounds. The surface must be mechanically prepared and free from contamination before priming or bonding. Refer to the Cleaning & Mechanical Preparation section for acceptable methods.

What happens if my subfloor is outside the 3mm tolerance?

If deviation exceeds 3mm over 2 metres, corrective levelling is required before installation. Installing over an uneven substrate can lead to joint stress, lipping, adhesive failure, or premature wear. Flatness must be measured using a straight edge and corrected where necessary.

Is construction plywood suitable for flooring overlays?

No. General construction plywood may contain internal voids or inconsistent bonding, which can lead to movement and failure. Flooring overlays should use appropriate flooring-grade plywood such as SP101 or BS EN 636-2 compliant boards, correctly fixed and free from core gaps.

Subfloor preparation underpins the performance of every flooring installation. Whether the finish is engineered wood, solid hardwood, laminate, SPC or glue-down LVT, long-term durability ultimately depends on the condition of the substrate beneath it.

Moisture must be verified, flatness accurately measured, and structural stability confirmed before installation begins. Surface preparation must then be completed correctly to ensure proper bonding and long-term performance.

Once flooring is installed, access to the substrate is limited and remedial work becomes considerably more disruptive and costly. Proper preparation at the outset protects the installation, safeguards warranties, and ensures the finished floor performs as intended for years to come.
